Outdoor Stairlifts
Open up and enjoy your outdoor space with Acorn Stairlifts.
Do you have a steep drive that is difficult to walk up? Acorn Stairlifts do not need to be limited to your indoor stairs; our outdoor stairlifts are the perfect mobility aid to give you access to those outdoor spaces you love or have limited access to.

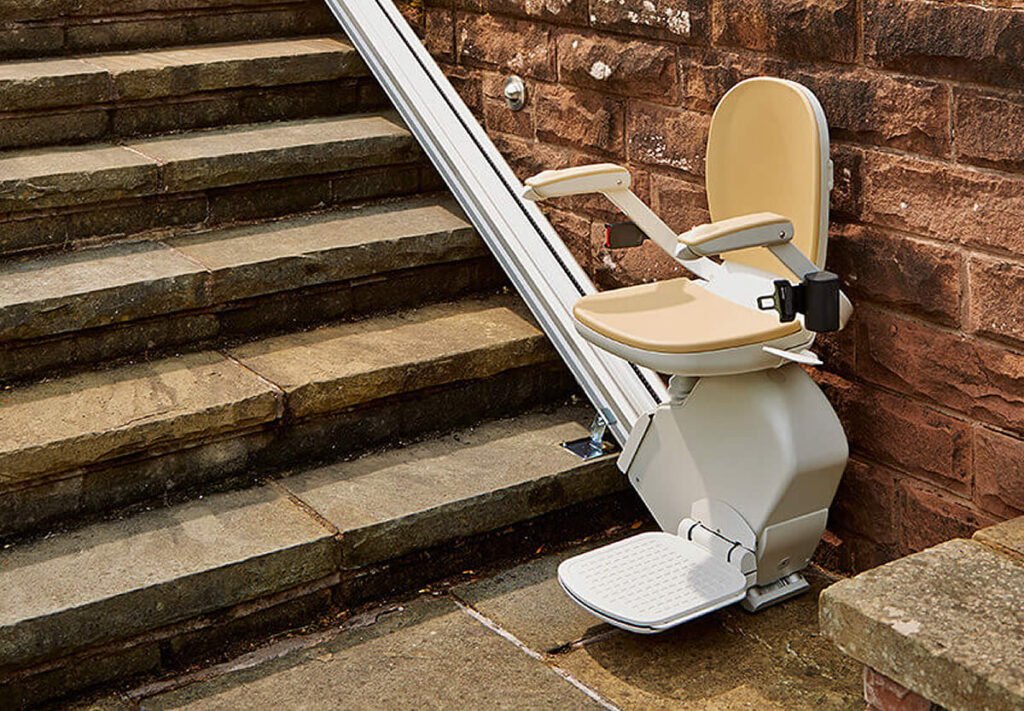

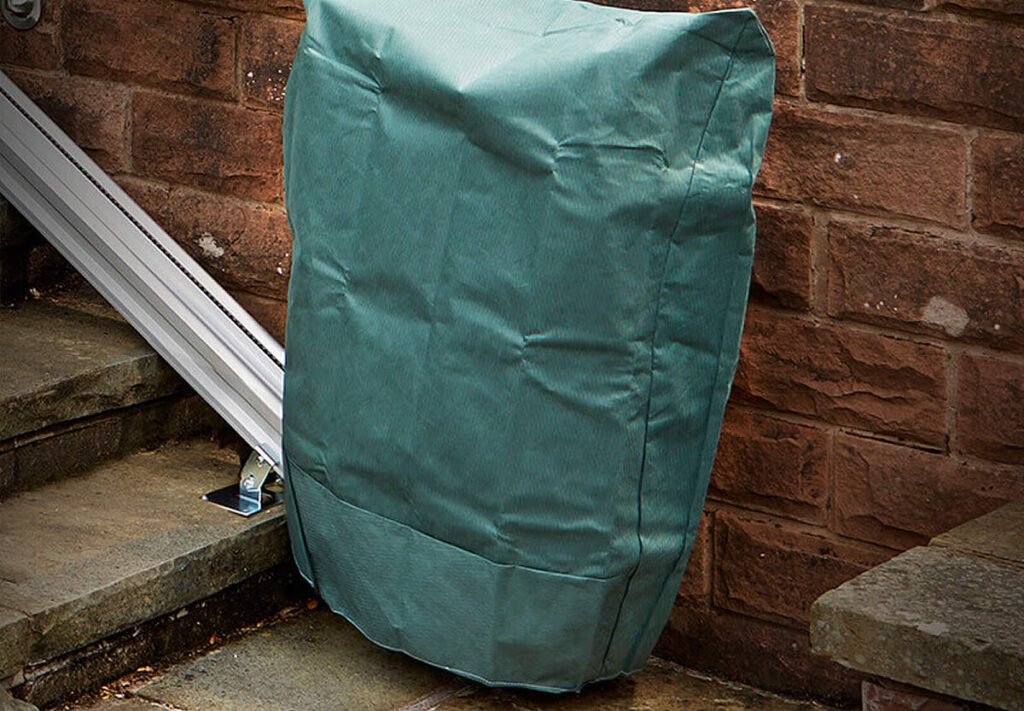

Our 130 outdoor stairlift comes with all the features that can be found on our straight stairlift. For extra protection, it comes with a weather resistant outdoor cover.
Safety and Convenience
- Folding foot rest
- Seat belt
- Diagnostic display
- Backup battery
- Remote control
Outdoor Stairlift Features
- Fits quickly and easily to the stairs, not the wall.
- Stairlift installation requires no major structural changes.
- Our stairlift stops automatically if it meets an obstruction.
- Slimline and folds away conveniently when not in use.
Outdoor Stairlift Installation
All Acorn stairlifts fit directly to the staircase, not the wall, so installation is quick and mess-free.
FREE Outdoor Stairlift Quote
Our comprehensive home survey is completely free and you’re under no obligation to buy!
Every day people regain their independence with an Acorn stairlift.
- Home Survey Takes Just 1 Hour
- FREE no obligation quote for a stair lifts
- Next day installation available
Get Your FREE Quote Now
Technical Details
Angles
Standard Indoor 130
| Short seat post | 40-55° | |
| Standard seat post | 29-55° | |
| Tall seat post | 23-55° | |
Power Swivel 130
| Standard seat post | 36-55° | |
| Tall seat post | 23-55° | |
Outdoor 130
| Standard seat post | 27-55° | |
Maximum Rail Length
| 10 metres | 394 inches | |
| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 95 | 3.75 |
| B | Top of footrest to top of seat (Short) (Tall) | 445 (410) (505) | 17.5 (16.25) (19.75) |
| C | Top of seat to top of arms | 250 | 9.75 |
| D | Top of arms to top of seat back | 190 | 17.5 |
| E | Width between armrests (Wide arm version) | 445 (495) | 17.5 (19.5) |
| F | Overall width | 605 | 23.75 |
| G | Overall height to floor | 980 | 38.5 |
| H | Length of arms from seat back | 470 | 18.5 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 325 | 12.75 |
| K | Width of footrest | 310 | 12.25 |
| L | Front of footrest to stringer | 570 | 22.5 |
| M | Back of seat to stringer | 13 | 0.5 |
| N | Folded width | 310 | 12.25 |
| O | Minimum width required to swivel at top | 670 | 26.25 |
| P | Distance from front of rail to stringer (Wide arm version) | 215 (240) | 8.5 (9.5) |
This stairlift is independently tested and manufactured to the following standards:
- BS EN 81-40:2020 – European safety standard – ‘Specification for powered stairlifts’.
- CE mark – Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ISO 9386:2-2000 International standard for stairlifts.
| Specifications | |
|---|---|
| Motor output speed | No greater than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Carriage Power | 24v DC batteries |
| Motor Power | 0.25KW |
| Maximum capacity | 127kg |
| Maximum capacity HD version | 159kg |
| Power supply input range | 50-60Hz, 120-240V AC |
* NOTE: The Mobility People in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
